3 Common Magazine Issues in Air Nailers and How to Fix Them

Air nailers are essential tools for construction and woodworking, but like any mechanical device, they are not without their challenges. Issues related to the magazine—such as nails jamming, bending, falling out, or the magazine failing to lock securely—can disrupt workflows and compromise project efficiency. Understanding these common problems and their underlying causes is crucial for maintaining optimal tool performance and minimizing downtime. This guide explores frequent magazine-related issues in air nailers and provides insight into their potential causes.

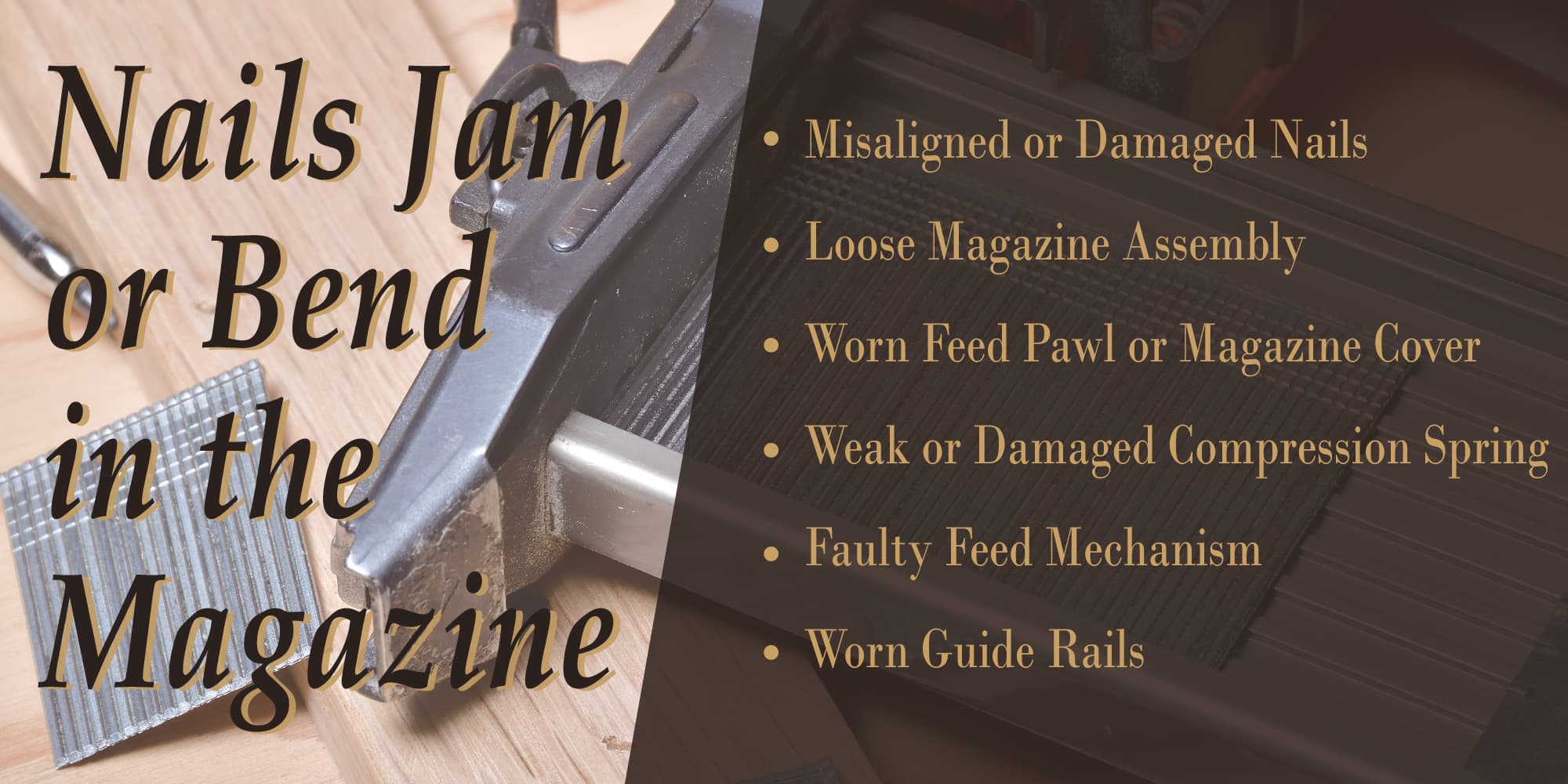

1. Nails Jam or Bend in the Magazine

Nails become stuck, bend, or fail to feed smoothly through the magazine of the air nailer.

· Misaligned or Damaged Nails

Improperly loaded, bent, or incorrectly sized nails can block smooth feeding and cause misalignment in the air nailer’s magazine and nail support.

· Loose Magazine Assembly

Loose screws or pins can misalign the magazine of the air nailer, increasing the likelihood of nails jamming or bending.

· Worn Feed Pawl or Magazine Cover

A worn feed pawl or magazine cover on the air nailer can disrupt the feeding process, causing nails to jam or bend frequently.

· Weak or Damaged Compression Spring

A weakened or broken compression spring or spring guide in the magazine of the air nailer may fail to provide proper tension, leading to nail misfeeds or misalignment that can result in bending.

· Faulty Feed Mechanism

A damaged feed piston or contact arm in the air nailer may not advance nails properly, causing frequent jams or bent nails within the magazine.

· Worn Guide Rails

Worn magazine posts or nail supports in the air nailer can misalign nails, disrupting smooth feeding through the magazine and increasing the risk of nails bending.

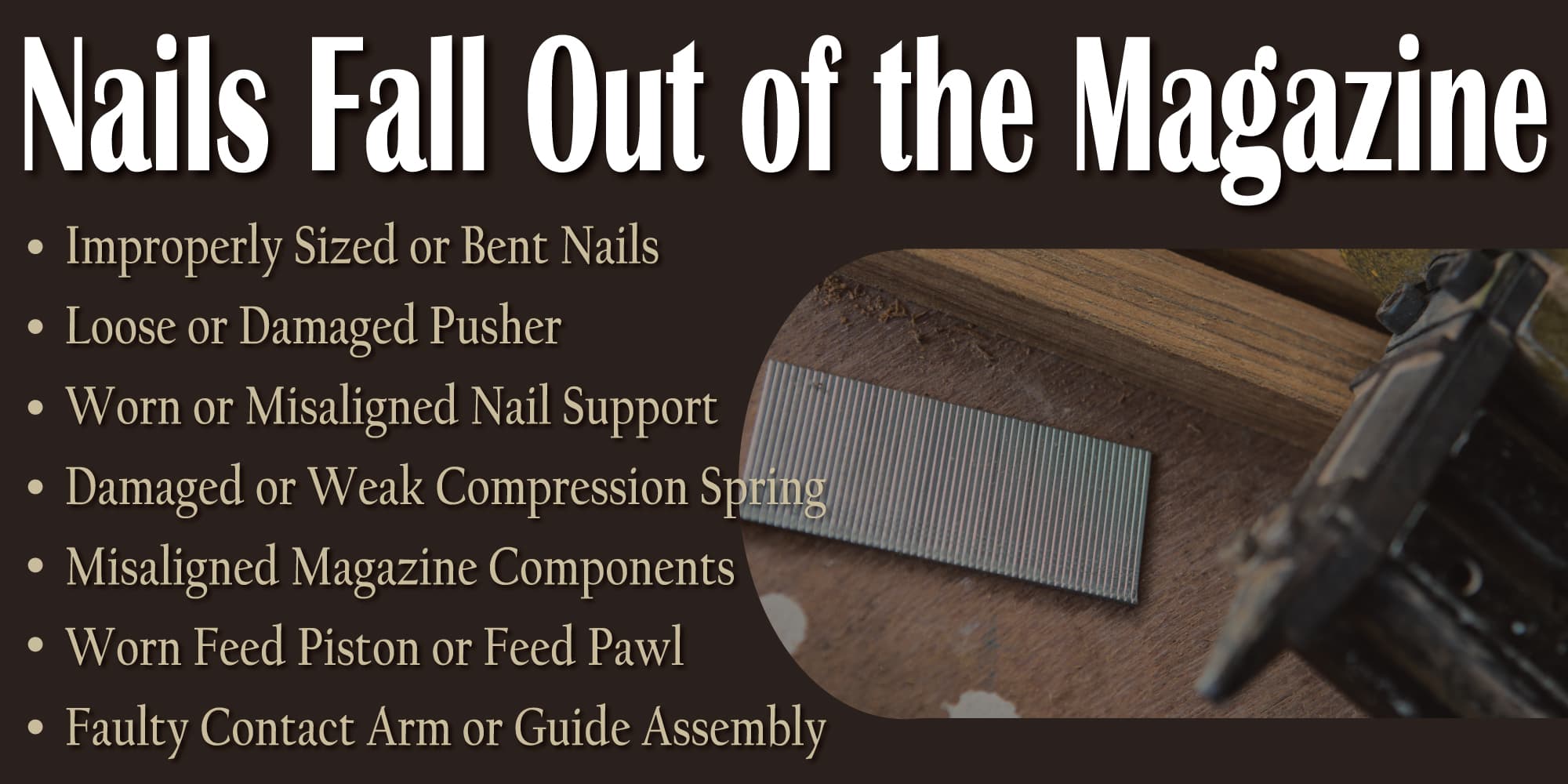

2. Nails Fall Out of the Magazine

Nails slip out of the magazine during operation, interrupting the workflow of the air nailer.

· Improperly Sized or Bent Nails

Using nails that are too small or irregularly sized can cause them to slip out of the magazine of the air nailer since they may not fit securely.

· Loose or Damaged Pusher

A loose or damaged pusher in the magazine of the air nailer, including components like the receiver spring or spring color, might fail to push the nails forward securely, causing them to slip out during operation.

· Worn or Misaligned Nail Support

The nail support inside the magazine of the air nailer may be worn or misaligned, failing to securely hold the nails in place.

· Damaged or Weak Compression Spring

A damaged or weakened compression spring in the magazine of the air nailer might not provide enough tension to keep the nails securely in position within the magazine.

· Misaligned Magazine Components

Misaligned components of the magazine in the air nailer, such as the magazine cover or magazine post, can disrupt the proper alignment of nails, causing them to fall out.

· Worn Feed Piston or Feed Pawl

A worn or malfunctioning feed piston or feed pawl in the air nailer might fail to hold or guide nails securely during operation.

· Faulty Contact Arm or Guide Assembly

A worn, broken, or misaligned contact arm or guide assembly in the air nailer might fail to guide nails properly through the magazine, leading to them slipping out before firing.

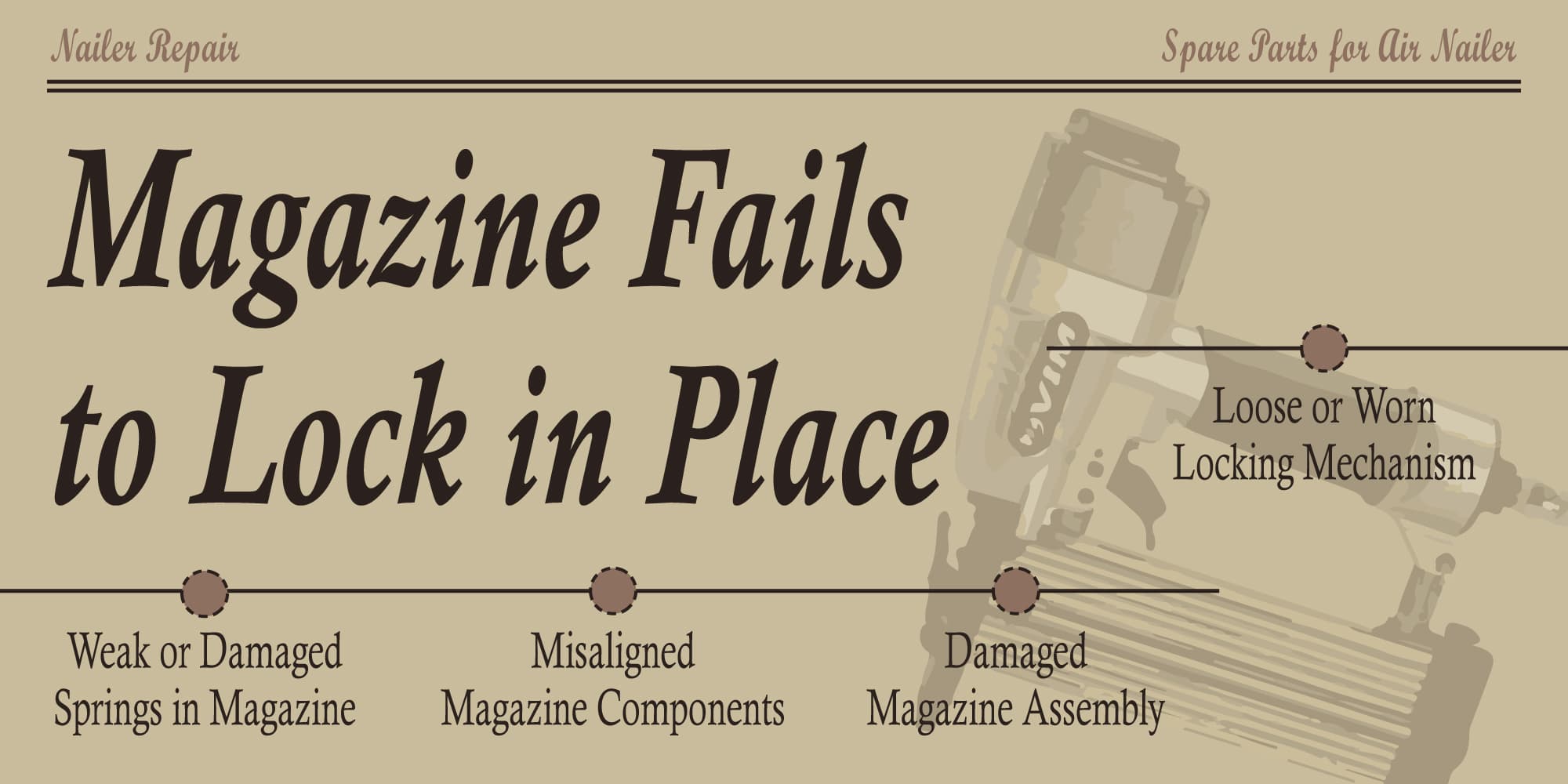

3. Magazine Fails to Lock in Place

The magazine of the air nailer moves or detaches during use, causing operational issues.

· Loose or Worn Locking Mechanism

The locking mechanism of the air nailer, such as the latch or pin, may be loose, worn, or damaged, causing the magazine to detach or move during use.

· Weak or Damaged Springs in Magazine

A damaged or weakened spring in the magazine of the air nailer, responsible for holding the magazine in place may fail to provide sufficient tension, leading to instability.

· Misaligned Magazine Components

Misaligned components of the magazine in the air nailer, such as the magazine post or latch assembly, can disrupt proper locking and result in the magazine detaching.

· Damaged Magazine Assembly

If the magazine of the air nailer is bent, warped, or damaged, it may not align correctly with the locking mechanism of the air stapler, causing locking failures.

Conclusion

Efficient operation of an air nailer relies heavily on the proper functioning of its magazine. Issues such as nails jamming, bending, slipping out, or the magazine failing to lock securely can disrupt workflow and reduce tool effectiveness. These problems often stem from misaligned components, worn parts, or improper nail selection. Identifying these causes and performing regular maintenance ensures your air nailer delivers reliable performance and minimizes project interruptions.
