5 Common Driver Unit Problems Every Air Nailer User Should Know

The driver assembly is a crucial component in pneumatic nailers, ensuring smooth and precise nail placement. However, various factors can affect its performance, leading to common air nailer repair issues such as the driver unit failing to return after firing, nails bending upon impact, or nails being only partially driven into the material. Problems like misalignment, insufficient air pressure, worn seals, or debris in the nail path can all contribute to these malfunctions. Additionally, excessive tool vibrations may indicate internal wear or airflow irregularities. This article will guide you through essential aspects of air nailer repair, helping you diagnose and resolve these issues effectively to maintain optimal tool performance.

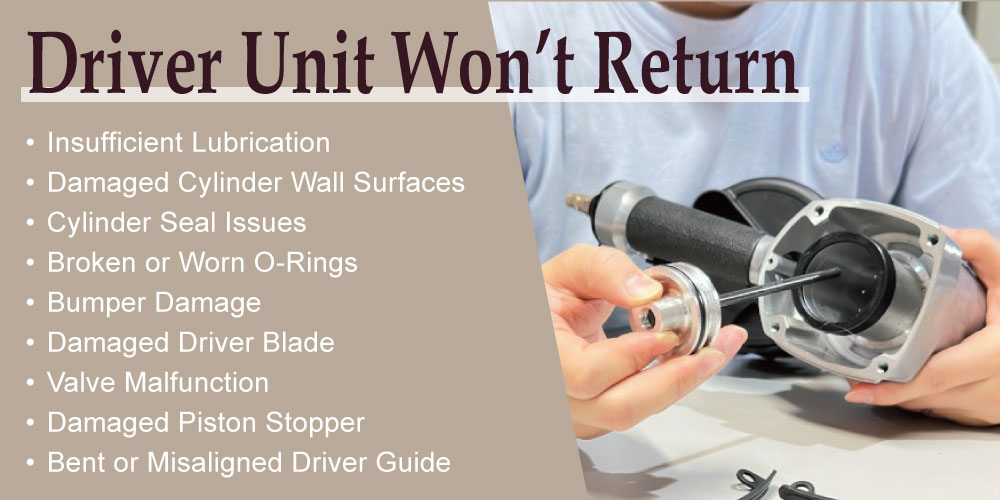

1. Driver Unit Won’t Return

When the driver unit fails to return after firing, the tool becomes inoperable, preventing further use.

Insufficient Lubrication

Lack of lubrication within the cylinder increases friction, making it difficult for the driver unit to return smoothly after firing.

Damaged Cylinder Wall Surfaces

Worn or damaged cylinder walls create uneven surfaces, leading to excessive friction that can obstruct the movement of the driver assembly.

Cylinder Seal Issues

A worn or damaged cylinder seal or cap seal can cause internal air leaks, reducing the pressure required to properly reset the driver unit.

Broken or Worn O-Rings

Damaged or deteriorated O-rings within the driver assembly may prevent the formation of proper air seals, causing the driver unit to remain stuck.

Bumper Damage

A hardened, cracked, or misaligned bumper may fail to absorb impact energy correctly, preventing the driver assembly from fully resetting.

Damaged Driver Blade

A bent, chipped, or excessively worn driver unit may cause jamming, preventing smooth movement and return after firing.

Valve Malfunction

A faulty head valve or other air control valves may fail to direct airflow properly, reducing the necessary pressure to reset the driver unit.

Damaged Piston Stopper

If the piston stopper is worn or damaged, it may fail to absorb impact forces correctly, causing the driver unit to get stuck in the firing position.

Bent or Misaligned Driver Guide

A warped, bent, or misaligned driver guide within the driver assembly may obstruct the smooth movement of the driver unit, preventing proper resetting.

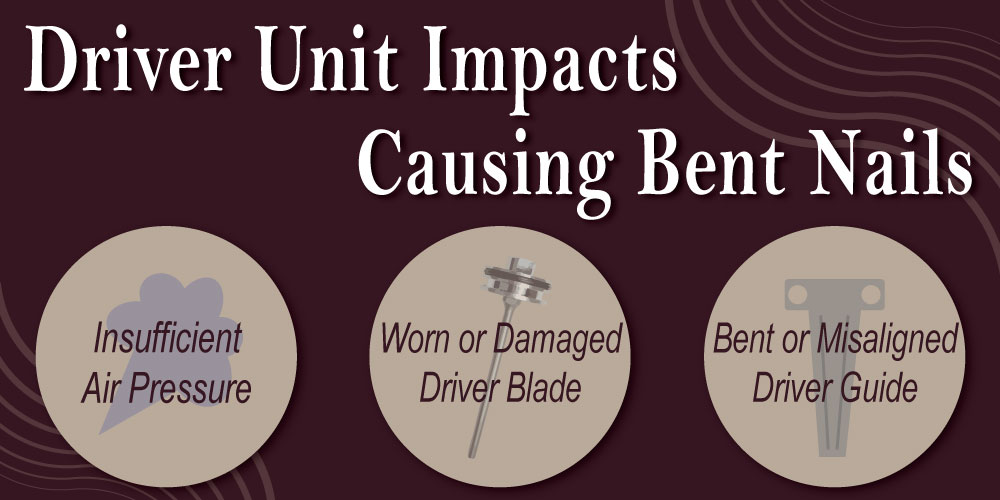

2. Driver Unit Impacts Causing Bent Nails

The driver unit’s condition can significantly impact the nails’ performance, sometimes causing them to bend during firing.

Insufficient Air Pressure

If the driver unit does not fully reset due to low or inconsistent air pressure, it may strike nails with insufficient force or at an incorrect angle, leading to bent nails.

Worn or Damaged Driver Blade

A driver unit that is worn, chipped, or improperly aligned may deliver uneven strikes, causing nails to bend instead of driving them straight into the material.

Bent or Misaligned Driver Guide

A bent or misaligned driver guide within the driver assembly can obstruct the smooth movement of the driver unit, leading to off-center strikes and bent nails.

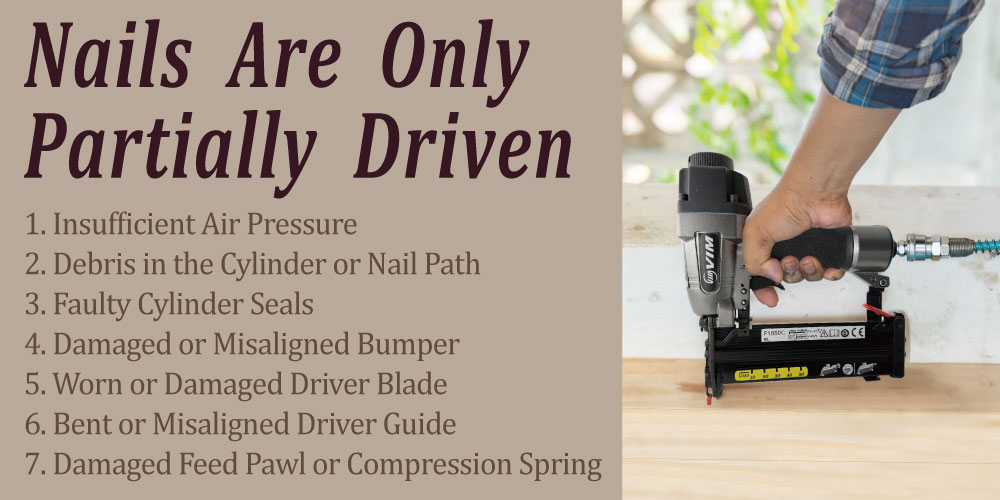

3. Nails Are Only Partially Driven

Nails do not fully penetrate the material, leaving them protruding.

Insufficient Air Pressure

Low or inconsistent air pressure can reduce the impact force of the driver unit, causing nails to only partially penetrate. This issue may stem from air supply problems with the compressor, leaks in the air hose, or faulty air connections.

Debris in the Cylinder or Nail Path

Dust, dirt, or small fragments inside the cylinder or nail path can obstruct the movement of the driver unit, reducing its effectiveness in fully driving nails.

Faulty Cylinder Seals

Worn or damaged cylinder seals or cap seals can cause air leaks, reducing the pressure required to drive nails completely into the material.

Damaged or Misaligned Bumper

A hardened, damaged, or improperly seated bumper may absorb too much impact energy, preventing the driver assembly from striking nails with sufficient force.

Worn or Damaged Driver Blade

A driver unit that is worn, chipped, or improperly aligned may fail to deliver the necessary force to fully drive nails into the material.

Bent or Misaligned Driver Guide

A bent or misaligned driver guide within the driver assembly can obstruct the smooth movement of the driver unit, leading to uneven strikes and partially driven nails.

Damaged Feed Pawl or Compression Spring (Feed Spring)

A damaged feed pawl or weakened feed spring may fail to properly position nails, causing the driver unit to strike them off-center, resulting in incomplete penetration.

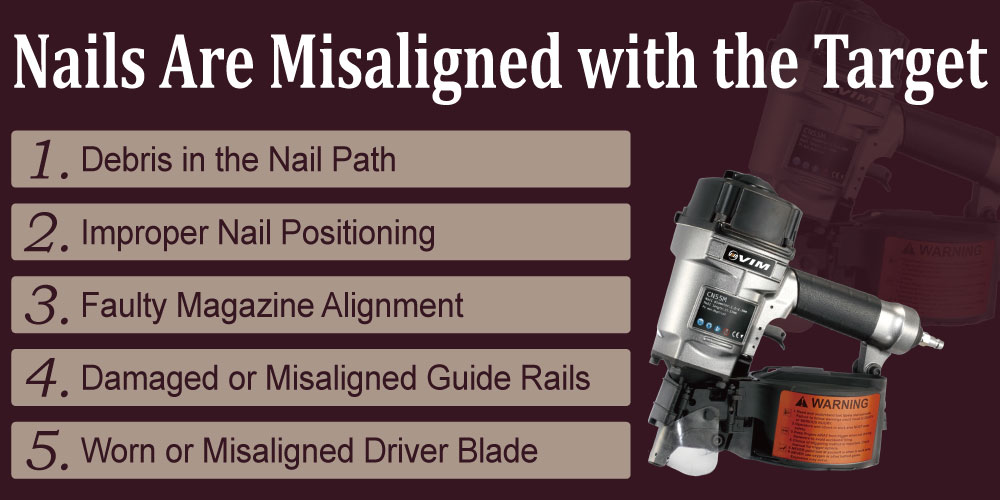

4. Nails Are Misaligned with the Target

Nails do not hit the intended target, resulting in misaligned fastening.

Debris in the Nail Path

Dust, dirt, or small fragments in the nail path may obstruct the smooth movement of nails, leading to misalignment.

Improper Nail Positioning

Nails that are not correctly positioned in the magazine due to weak compression springs or debris can fail to align properly with the driver unit, resulting in misaligned fastening.

Faulty Magazine Alignment

If the magazine is not properly aligned with the driver assembly, nails may be fed at an incorrect angle, causing them to miss the target.

Damaged or Misaligned Guide Rails

Worn or damaged guide rails, such as the magazine post or receiver spring, can lead to misalignment during nail feeding, affecting placement accuracy.

Worn or Misaligned Driver Blade

A worn, bent, or improperly aligned driver unit may strike nails off-center, preventing them from hitting the intended target.

5. Air Nailer Feels Vibrations During Use

Excessive vibrations occur while using the tool, potentially affecting precision and user comfort.

Loose Internal Components

Bolts, screws, or internal parts that have loosened over time may increase vibrations during operation.

Defective or Inadequate Grip Insulation

Aging or poorly designed handle grips may fail to absorb vibrations effectively, making the tool feel unstable in the user’s hand.

Worn or Damaged Driver Blade

A driver unit that is worn, bent, or unbalanced may create instability, leading to excessive vibrations when the tool is fired.

Faulty O-Rings or Seals

Damaged or deteriorated O-rings and seals may cause inconsistent air pressure distribution, leading to unstable operation and increased vibrations.

Unstable Air Supply or Pressure Surges

Fluctuating air pressure, clogged air passages, or malfunctioning valves can cause inconsistent firing force, resulting in noticeable vibrations.

Piston Misalignment or Excess Friction

If the piston is misaligned, has excessive carbon buildup, or lacks proper lubrication, it may not move smoothly, leading to abnormal vibrations during operation.

Conclusion

Proper maintenance and timely air nailer repair are essential for ensuring the efficiency and reliability of a pneumatic nailer. Issues such as a stuck driver unit, misfired nails, or excessive vibrations often result from insufficient lubrication, air pressure inconsistencies, worn seals, or component misalignment. Regular maintenance, including cleaning, lubrication, and replacing worn parts, can prevent these problems and extend the tool’s lifespan. By identifying and addressing these issues early, users can minimize downtime and maintain consistent fastening performance.

For those looking for a durable and high-performance replacement driver assembly, Vim driver assemblies offer superior quality and longevity. Made from high-strength, wear-resistant materials, Vim driver assemblies are designed to withstand heavy-duty use, ensuring smooth operation, reliable performance, and extended tool lifespan. Whether for routine maintenance or a performance upgrade, choosing Vim driver units provides a complete and long-lasting solution for air nailer repair.

Enhance your repair program with VIM’s reliable parts and exceptional customer service. Visit VIM's website or contact us directly to learn more about our offerings and how we can support your projects.
