SP5019B

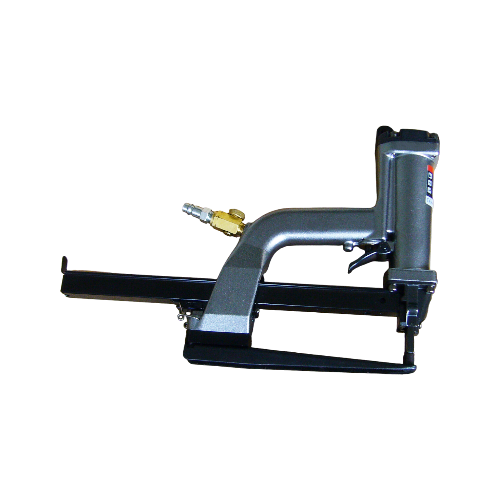

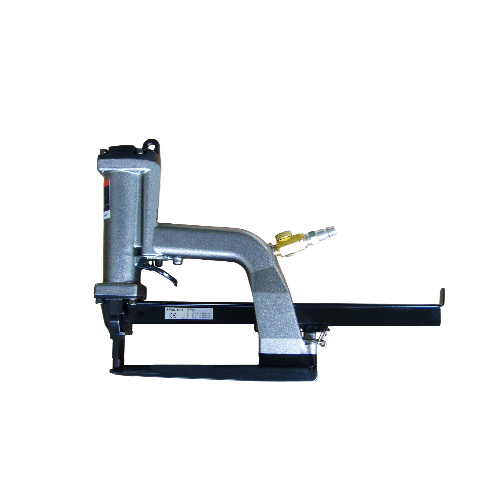

B Type Pneumatic Stapling Plier For Blister And Carton- Specification
- L x W x H: 370 x 55 x 240 mm
- Weight: 2.2 kgs
- Throat Depth: 150 mm

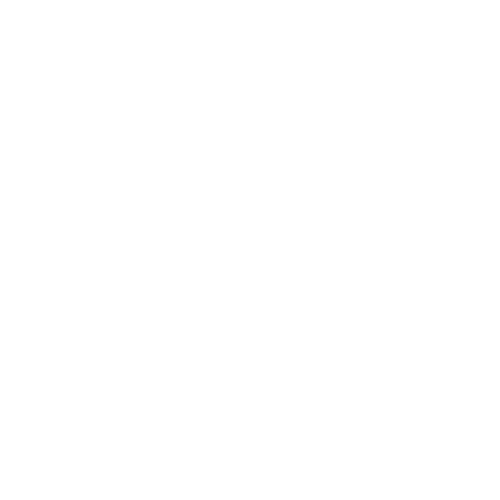

- Crown: 12.85 mm
- Width x Thickness: 1.27 x 0.55 mm
- Fastener Range: 6.3, 9.5, 12.7, 15.8 mm (1/4", 3/8", 1/2", 5/8")
- Loading Capacity: 220 pcs
- Operating Pressure: 2.5 - 3.9 bar (36 - 55 psi)
Application:
- Corrugated container
- Vegetable tray box
- Pallet
- Container insert
- Die cut insert
- Fabric board
Features:
- Powerful shuttle blade provides pre-compression prior and during stapling
- Strong and tight closure ability without breaking the corrugated surface
- High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges
- Securely fasten up to 2 x AB flute or 4 x C flute boards
