21 Gauge
PT850S
21 Ga. 2 In 1 Pin Nailer- Specification
- L x W x H: 242 x 45 x 235 mm
- Weight: 1.15 kgs
- Loading Capacity: 140 pcs
Description

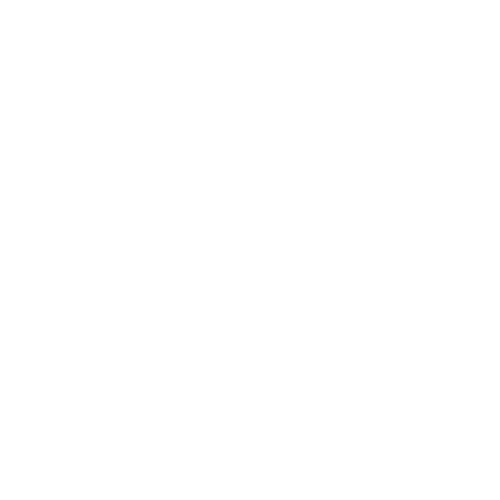

- Nail Type: Micro Head and Headless Pins
- Gauge: 21 ga.
- Nail Shank Dia.: 0.84 mm (0.033”)
- Fastener Range: 15 - 50 mm (19/32" ~ 2")

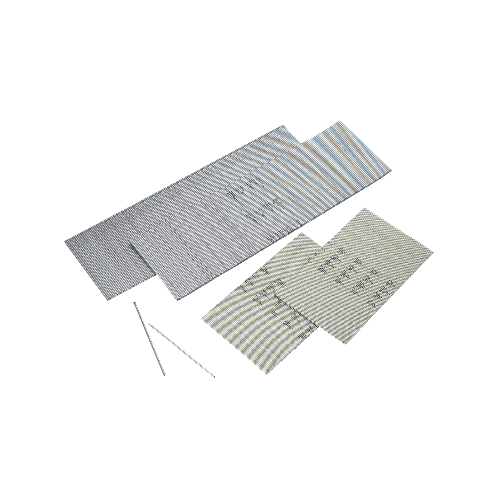

- Select the pins for PT850S
Product Overview

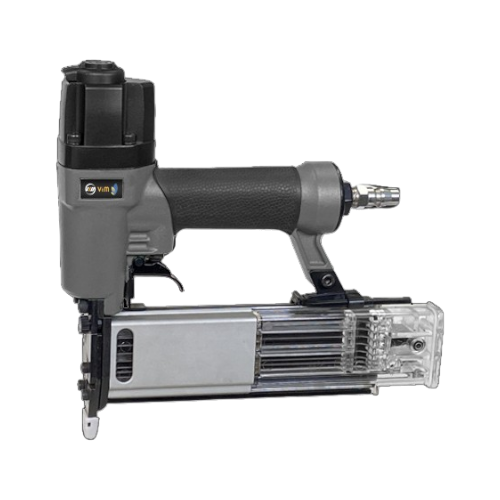

The PT850S is a professional-grade 21-gauge pneumatic 2-in-1 pin nailer, designed for precision tasks such as window and picture framing, cabinet work, glazing bead installation, and trim work. This versatile tool supports both headless pins and micro head brads, accommodating fasteners ranging from 15 mm to 50 mm in length.
Key features include a 360-degree rotatable air deflector that directs exhaust away from the user, and a patented safety design with an anti-dry fire mechanism to enhance operational safety. The adjust-free magazine with a sight window simplifies the use of various fastener lengths and allows users to monitor nail levels. The narrow nose design ensures fastening precision by providing access to tight areas and detailed work surfaces, while a removable no-mar rubber pad protects workpieces from damage. For added convenience, the removable nose cover allows easy clearing of fastener jams. The ergonomic rubber handle grip enhances user comfort, making the PT850S suitable for extended use.
Application
- Lightwood assembly
- Window frame
- Picture frame
- Cabinet
- Decorative molding
- Glazing bead
- Trimwork
Features
- 360 degree rotatable air deflector
- Patented safety design
- Anti-dry fire design for enhanced safety
- Magazine sight window
- Adjust-free magazine for easy using any fastener length
- Special magazine design for delicate headless and micor head pins
- Removable no-mar rubber pad to protect workpieces
- Narrow nose allows to reach into tight areas and detailed work surface
- Removable nose cover provides easy access to clear fastener jams
- Ergonomic and comfortable rubber handle grip
Comparison Chart for Similar Products
| 21 Gauge Pin Nailer | ||||||
|---|---|---|---|---|---|---|
| Model No. | Fastener Range | Capacity | Magazine | Direct of Exhausting | Safety Design | Anti-Dry Fire Design |
| PT830FL | 12 - 30 mm (15/32" ~ 1-3/16") |
150 pcs | Extended | Front | Double Trigger | X |
| PT840F | 12 - 40 mm (15/32" ~ 1-9/16") |
150 pcs | Normal | Front | Double Trigger | X |
| PT840S | 12 - 40 mm (15/32" ~ 1-9/16") |
140 pcs | Normal | 360 Degree | Contact Safety Lever | X |
| RPT850R | 12 - 50 mm (15/32" ~ 2") |
150 pcs | Normal | Rear | Double Trigger | X |
| PT850S | 15 - 50 mm (19/32" ~ 2") |
140 pcs | Normal | 360 Degree | Contact Safety Lever | V |
FAQ
1. What are the differences between 23-gauge and 21-gauge pin nailers?
The 21-gauge pins have a thicker nail shank diameter compared to 23-gauge pins. This provides greater holding power but also results in larger holes on the surface of the workpiece.
2. Which type of exhaust system is suitable for me?
VIM’s pin nailers offer three types of exhaust system: front exhaust, rear exhaust, and 360-degree directional exhaust.
- Front Exhaust: Ideal for preventing air from blowing onto the user’s hands or face.
- Rear Exhaust: We often equipped with a silencer for quieter operation, is preferred for keeping the work area free from blown debris.
- 360-Degree Directional Exhaust: This type allows users to control the direction of the exhaust for greater convenience and flexibility.
3. Do I need an air blowing system?
If your working surfaces require occasional cleaning, an air blowing system is an excellent choice. It saves time by eliminating the need to switch to other cleaning tools.
4. Is a safety design necessary for my pin nailer?
Some countries have regulations regarding the safety systems of nailers. It is recommended to check your local policies before purchasing a pin nailer. If there are no specific regulations in your country, you can choose a safety design based on your operating habits.
- Safety/Double Trigger: This feature requires activating a safety trigger before pulling the main trigger to shoot pins, reducing the risk of misfires.
- Anti-dry Fire System: This design stops the pin nailer from operating when only a few pins are left in the magazine, preventing potential damage to the tool and ensuring safe operation.
OEM service
Our OEM services offer comprehensive customization options to meet your specific branding needs. We provide the ability to customize the color of your nail gun, apply your private label, design and create personalized packaging, and manual.
With our OEM services, you can confidently create a unique and professional product line that stands out in the market.
Guarantee
VIM warrants to the original purchaser that our nailer will be free from defects in material and workmanship under normal use for a period of 1 year from the date of original purchase.
If this nailer should prove to be defective in material or workmanship within the warranty period, we will send the spare parts to you to replace, without charge.
The 1-year warranty does not include easy-worn parts, and any defect or damages caused by resulting from accident, misuse, abuse, improper maintenance, or normal wear and tear.
