23 Gauge
PT635B

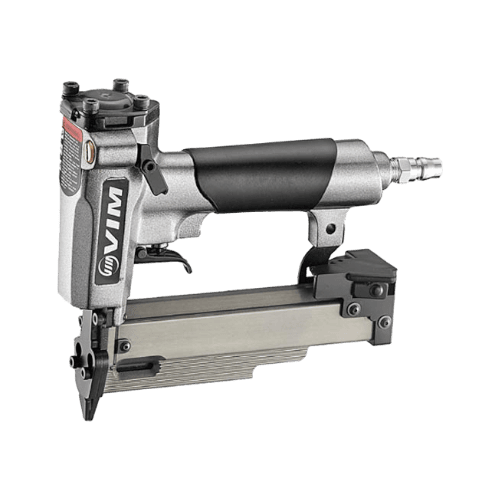

23 GA. 3 In1 Built-in Air Blower Pin Nailer- Specification
- L x W x H: 220 x 52 x 188 mm
- Weight: 0.92 kgs
- Loading Capacity: 120 pcs
- Operating Pressure: 5 - 7 bar (70 - 100 psi)
Description
- Nail Type: Micro Head and Headless Pins
- Gauge: 23 ga.
- Nail Shank Dia.: 0.64 mm (0.025”)
- Fastener Range: 12 - 35 mm (15/32" ~ 1-3/8")

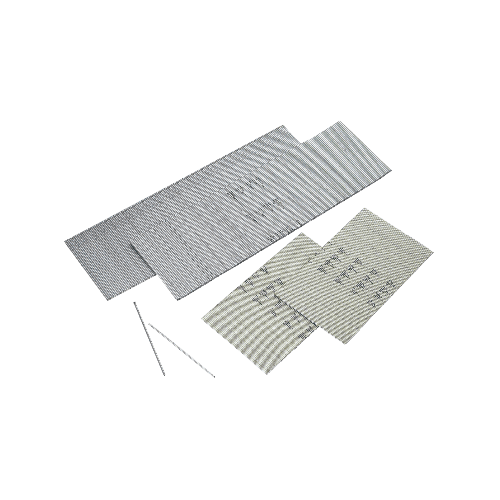

- Select the pins for PT635B
Product Overview
The PT635B is a versatile 23-gauge pin nailer crafted for precision and reliability, capable of driving both headless pins and micro head brads ranging from 12 to 35 mm (15/32" to 1-3/8"). Designed for maximum usability, it features a lightweight body for reduced fatigue, a fine-tipped nose for detailed work, and a no-mar protective tip to safeguard delicate surfaces. With a built-in blow gun for clearing debris and a practical belt hook for convenience, the PT635B excels in delivering consistent performance for woodworking, trim installation, and fine finishing tasks, making it a trusted tool for both professionals and DIY enthusiasts.
Application
- Light wood assembly
- Finish carpentry
- Trim work
- Decorative molding
- Dowel pin
- Joint
- Mirror and picture frame
- Glazing strip
- Craftwork
- Paneling
- External softwood trim
- Wall framing
- Truss
- Rattan furniture
- Display and sign work
Features
- Lightweight
- Well balanced
- Magazine sight window
- Fine precision nose for easy aiming
- No-mar soft plastic nose tip
- Built-in blow gun
Comparison Chart for Similar Products
| 23 Gauge Pin Nailer | |||||||
|---|---|---|---|---|---|---|---|
| Model No. | Fastener Range | Capacity | Magazine | Direct of Exhausting | Air Blowing System | Safety Trigger | Anti-Dry Fire Design |
| PT606FL P606FL |
5 - 6 mm (3/16" ~ 15/64") |
200 pcs | Extended | Front | X | V | V |
| RPT630R | 12 - 30 mm (15/32" ~ 1-3/16") |
120 pcs | Normal | Rear | X | V | X |
| RPT630F | 12 - 30 mm (15/32" ~ 1-3/16") |
120 pcs | Normal | Front | X | V | X |
| PT630B | 12 - 30 mm (15/32" ~ 1-3/16") |
120 pcs | Normal | Front | V | X | X |
| RPT635R | 12 - 35 mm (15/32" ~ 1-3/8") |
120 pcs | Normal | Rear | X | V | X |
| PT635B | 12 - 35 mm (15/32" ~ 1-3/8") |
120 pcs | Normal | Front | V | X | X |
| RPT650R | 12 - 50 mm (15/32" ~ 2") |
120 pcs | Normal | Rear | X | V | X |
FAQ
1. What are the differences between 23-gauge and 21-gauge pin nailers?
The 21-gauge pins have a thicker nail shank diameter compared to 23-gauge pins. This provides greater holding power but also results in larger holes on the surface of the workpiece.
2. Which type of exhaust system is suitable for me?
VIM’s pin nailers offer three types of exhaust system: front exhaust, rear exhaust, and 360-degree directional exhaust.
- Front Exhaust: Ideal for preventing air from blowing onto the user’s hands or face.
- Rear Exhaust: We often equipped with a silencer for quieter operation, is preferred for keeping the work area free from blown debris.
- 360-Degree Directional Exhaust: This type allows users to control the direction of the exhaust for greater convenience and flexibility.
3. Do I need an air blowing system?
If your working surfaces require occasional cleaning, an air blowing system is an excellent choice. It saves time by eliminating the need to switch to other cleaning tools.
4. Is a safety design necessary for my pin nailer?
Some countries have regulations regarding the safety systems of nailers. It is recommended to check your local policies before purchasing a pin nailer. If there are no specific regulations in your country, you can choose a safety design based on your operating habits.
- Safety/Double Trigger: This feature requires activating a safety trigger before pulling the main trigger to shoot pins, reducing the risk of misfires.
- Anti-dry Fire System: This design stops the pin nailer from operating when only a few pins are left in the magazine, preventing potential damage to the tool and ensuring safe operation.
OEM service
Our OEM services offer comprehensive customization options to meet your specific branding needs. We provide the ability to customize the color of your nail gun, apply your private label, design and create personalized packaging, and manual.
With our OEM services, you can confidently create a unique and professional product line that stands out in the market.
Guarantee
VIM warrants to the original purchaser that our nailer will be free from defects in material and workmanship under normal use for a period of 1 year from the date of original purchase.
If this nailer should prove to be defective in material or workmanship within the warranty period, we will send the spare parts to you to replace, without charge.
The 1-year warranty does not include easy-worn parts, and any defect or damages caused by resulting from accident, misuse, abuse, improper maintenance, or normal wear and tear.
