23 Gauge
P606FL

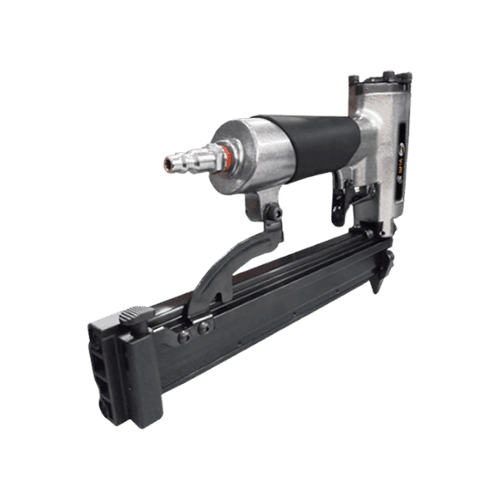

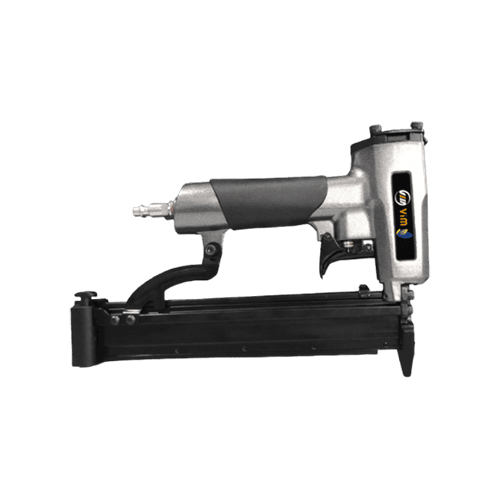

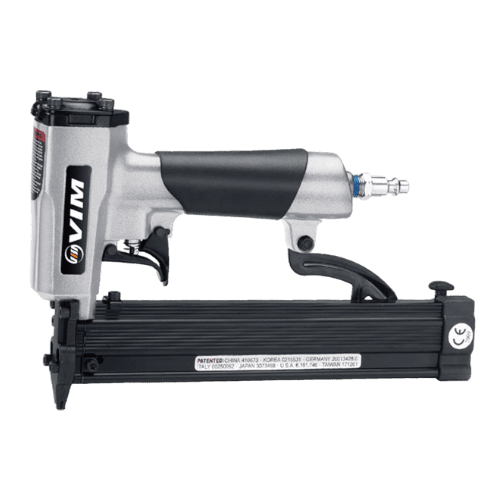

23 GA. Pin Nailer With Extened Magazine- Specification
- L x W x H : 265 x 40 x 180 mm
- Weight: 1.06 kgs
- Loading Capacity: 200 pcs
- Operating Pressure: 5 - 7 bar (70 - 100 psi)
Description

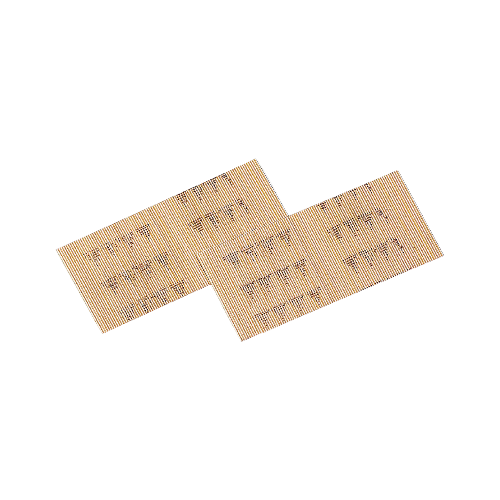

- Nail Type: Headless Pins
- Gauge: 23 ga.
- Nail Shank Dia.: 0.64 mm (0.025”)
- Fastener Range: 5 - 6 mm (3/16”~15/64”)
- Select the pins for P606FL
Product Overview
The P606FL 23 GA. Pin Nailer with Extended Magazine is a versatile and precise tool designed for professional woodworking and intricate detail work. It accommodates 23-gauge headless pins with a shank diameter of 0.64 mm (0.025") and supports fasteners ranging from 5 mm to 6 mm (3/16" to 15/64"), making it suitable for a variety of applications.
Featuring a double trigger safety lock and an auto lock-out mechanism to prevent dry-firing, it ensures safe and reliable operation. The narrow nose design allows access to tight spaces, while the removable nose cover makes clearing fastener jams quick and easy. Additionally, the manual override button provides precise control for driving the last few pins, and the extended magazine minimizes the need for frequent reloading, enhancing efficiency. With a comfortable rubber handle grip, this pin nailer delivers superior comfort and control, making it an essential tool for detailed and demanding tasks.
Application
- Light wood assembly
- Finish carpentry
- Trim work
- Decorative molding
- Dowel pin
- Joint
- Mirror and picture frame
- Glazing strip
- Craftwork
- Paneling
- External softwood trim
- Wall framing
- Truss
- Rattan furniture
- Display and sign work
Features
- Double trigger safety lock
- Auto lock-out prevents the dry-firing
- Narrow nose allows to reach into tight areas and detailed work surfaces
- Removable nose cover provides easy access to clear fasteners jams
- Manual override button allow the last several pins to be driven
- Extended magazine
- Comfortable rubber handle grip
Comparison Chart for Similar Products
| 23 Gauge Pin Nailer | |||||||
|---|---|---|---|---|---|---|---|
| Model No. | Fastener Range | Capacity | Magazine | Direct of Exhausting | Air Blowing System | Safety Trigger | Anti-Dry Fire Design |
| PT606FL P606FL |
5 - 6 mm (3/16" ~ 15/64") |
200 pcs | Extended | Front | X | V | V |
| RPT630R | 12 - 30 mm (15/32" ~ 1-3/16") |
120 pcs | Normal | Rear | X | V | X |
| RPT630F | 12 - 30 mm (15/32" ~ 1-3/16") |
120 pcs | Normal | Front | X | V | X |
| PT630B | 12 - 30 mm (15/32" ~ 1-3/16") |
120 pcs | Normal | Front | V | X | X |
| RPT635R | 12 - 35 mm (15/32" ~ 1-3/8") |
120 pcs | Normal | Rear | X | V | X |
| PT635B | 12 - 35 mm (15/32" ~ 1-3/8") |
120 pcs | Normal | Front | V | X | X |
| RPT650R | 12 - 50 mm (15/32" ~ 2") |
120 pcs | Normal | Rear | X | V | X |
FAQ
1. What are the differences between 23-gauge and 21-gauge pin nailers?
The 21-gauge pins have a thicker nail shank diameter compared to 23-gauge pins. This provides greater holding power but also results in larger holes on the surface of the workpiece.
2. Which type of exhaust system is suitable for me?
VIM’s pin nailers offer three types of exhaust system: front exhaust, rear exhaust, and 360-degree directional exhaust.
- Front Exhaust: Ideal for preventing air from blowing onto the user’s hands or face.
- Rear Exhaust: We often equipped with a silencer for quieter operation, is preferred for keeping the work area free from blown debris.
- 360-Degree Directional Exhaust: This type allows users to control the direction of the exhaust for greater convenience and flexibility.
3. Do I need an air blowing system?
If your working surfaces require occasional cleaning, an air blowing system is an excellent choice. It saves time by eliminating the need to switch to other cleaning tools.
4. Is a safety design necessary for my pin nailer?
Some countries have regulations regarding the safety systems of nailers. It is recommended to check your local policies before purchasing a pin nailer. If there are no specific regulations in your country, you can choose a safety design based on your operating habits.
- Safety/Double Trigger: This feature requires activating a safety trigger before pulling the main trigger to shoot pins, reducing the risk of misfires.
- Anti-dry Fire System: This design stops the pin nailer from operating when only a few pins are left in the magazine, preventing potential damage to the tool and ensuring safe operation.
OEM service
Our OEM services offer comprehensive customization options to meet your specific branding needs. We provide the ability to customize the color of your nail gun, apply your private label, design and create personalized packaging, and manual.
With our OEM services, you can confidently create a unique and professional product line that stands out in the market.
Guarantee
VIM warrants to the original purchaser that our nailer will be free from defects in material and workmanship under normal use for a period of 1 year from the date of original purchase.
If this nailer should prove to be defective in material or workmanship within the warranty period, we will send the spare parts to you to replace, without charge.
The 1-year warranty does not include easy-worn parts, and any defect or damages caused by resulting from accident, misuse, abuse, improper maintenance, or normal wear and tear.
