C Ringer

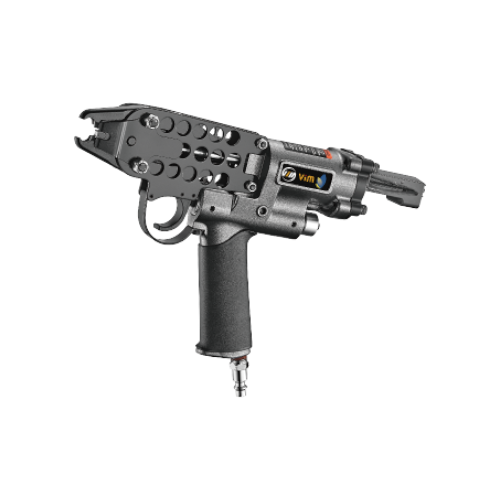

HR1880W

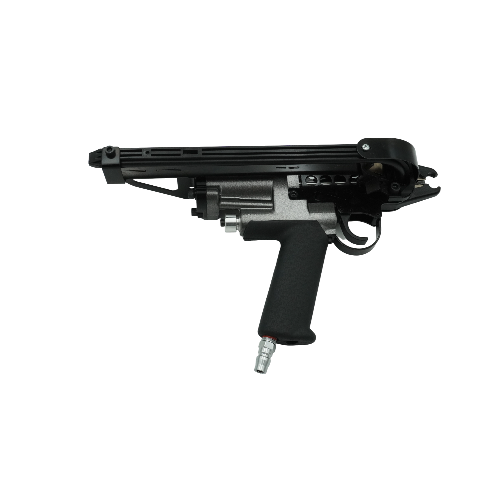

15 GA. Pneumatic Hog Ring Plier- Specification
- L x W x H: 332 x 85 x 220 mm
- Weight: 1.45 kgs
- Loading Capacity: 130 pcs
- Operating Pressure: 5 - 8 bar (70 - 120 psi)
Description

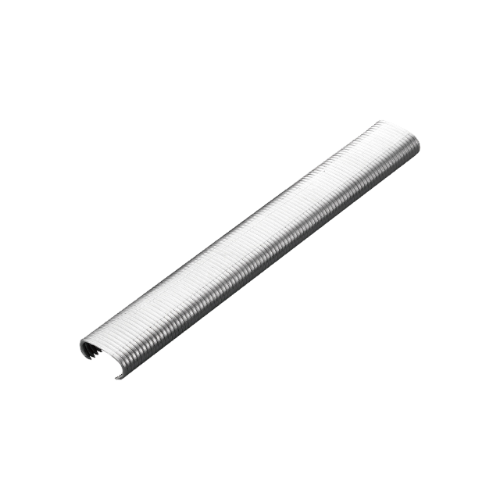

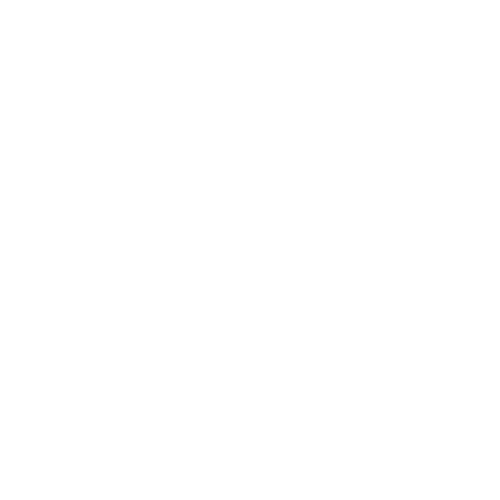

- Fastener Type: C Rings (Hog Rings)
- Crown: 23.7 mm
- Fastener Height: 12 mm
- Shank Dia: 1.8 mm
- Minimum Closure Size: 8.0 mm
- Select the C-rings for HR1880W
Equivalent
- Stanley Bostitch Spenax S4CLW
- Stanley Bostitch SC7C
- MEIHO MC-6CA
- MEIHOMC-6CALW
Product Overview
The HR1880W 15 GA. Pneumatic Hog Ring Plier is engineered for efficient and reliable fastening in a variety of industrial applications. Built with long fiber-reinforced materials, the tool offers a lightweight and durable construction that helps reduce operator fatigue, making it well-suited for continuous use in production environments.
Designed for 15-gauge C-rings with a 23.7 mm crown, 1.8 mm shank diameter, and 12 mm height, the HR1880W delivers a secure closure down to 8.0 mm. Its user-friendly loading mechanism makes reloading quick and easy, while the built-in muffler ensures quieter operation—ideal for maintaining a more comfortable workspace.
Versatile and dependable, the HR1880W is ideal for applications such as pocket spring mattress assembly, car seat manufacturing, upholstery work, bag closure, fencing, greenhouse construction, and cage assembly. With its combination of comfort, durability, and consistent performance, it's a trusted choice for professionals seeking high-quality fastening solutions.
Application

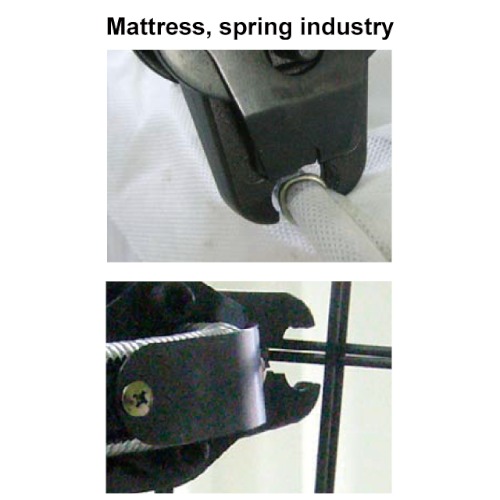

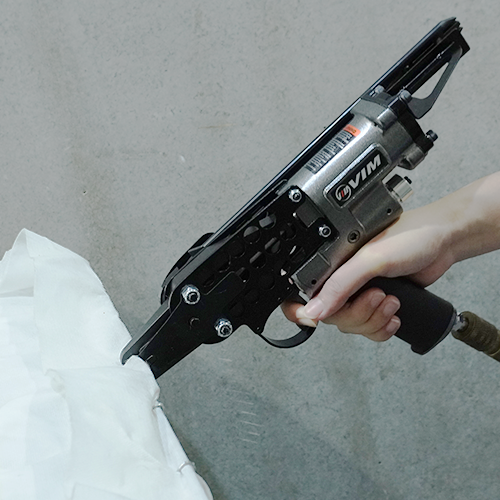

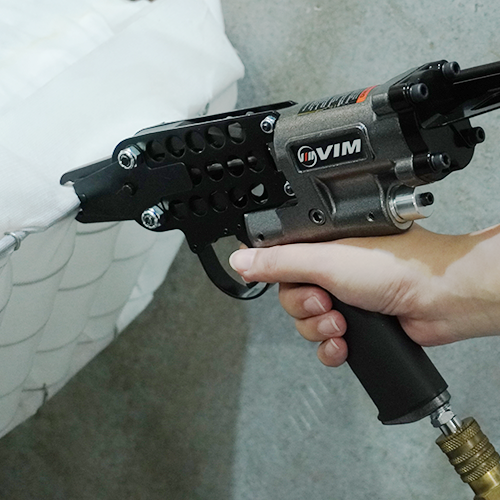

- Pocket spring mattress
- Car seat
- Upholstery

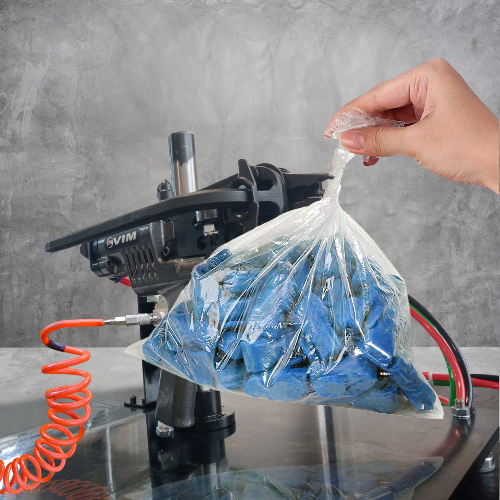

- Bag closure
- Fence
- Greenhouse
- Cage

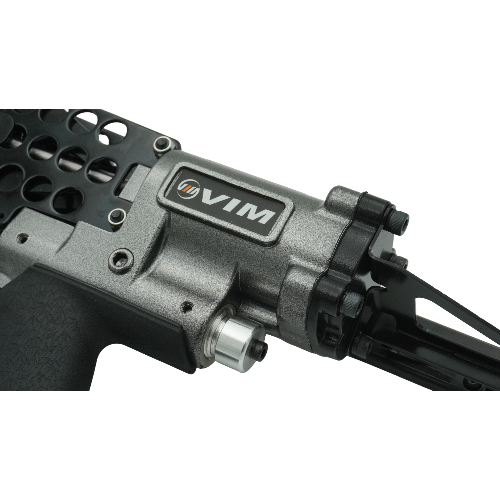

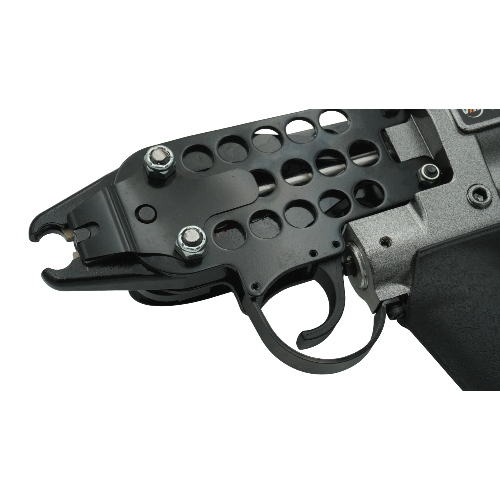

Features

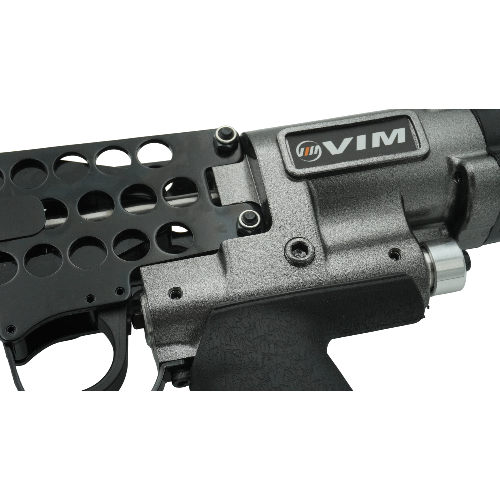

- Long fiber compounds make it lighter and faster
- Lightweight for reducing operator fatigue
- Easy loading

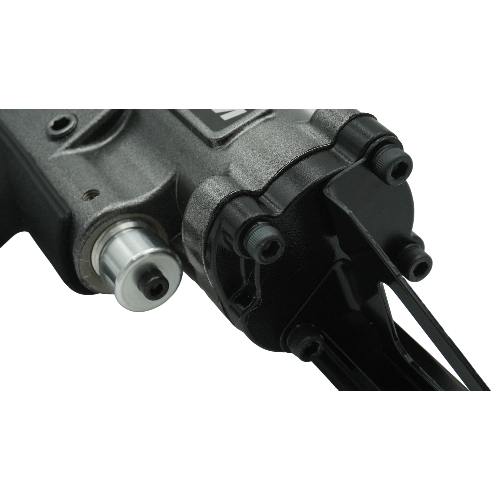

- Muffler inside provides silent operation

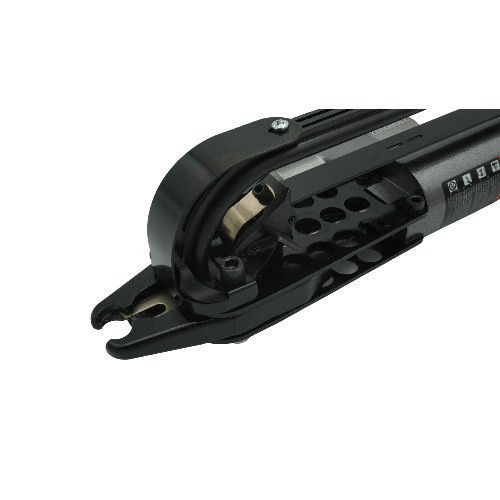

- Extended magazine for loading more hog rings
Comparison Chart for Similar Products
15 Ga. & 16 Ga. Pneumatic Hog Ring Plier | |||||
---|---|---|---|---|---|
Model No. | Outer Crown | Fastener Height | Wire Size | Minimum Closure Size | Nose Type |
HR1848W | 23.7 mm | 12.0 mm | 1.8 mm | 4.8 mm | Normal |
HR1880W | 23.7 mm | 12.0 mm | 1.8 mm | 8.0 mm | Normal |
HR1880LW | 23.7 mm | 12.0 mm | 1.8 mm | 8.0 mm | Extension |
HR1630W | 16.9 mm | 9.0 mm | 1.6 mm | 3.0 mm | Normal |
FAQ
1. What’s the difference between C, D, and Omega type hog ring pliers?
Hog ring pliers are classified based on the shape of the rings they work with. C-type pliers are the most commonly used, suitable for general fastening tasks such as fencing, automotive seats, and bag closures. D-type pliers are designed for D-shaped rings, often used in specific mechanical or agricultural applications. M (Omega) type pliers are made for fastening with Omega-shaped rings, which offer wider coverage and are ideal for tasks like assembling cages or securing mesh in larger surface areas. Choosing the right type depends on the ring shape required for your application.
【Extending reading: Mastering Hog Ring Pliers: 9 Reasons You Need This Essential Tool】
2. How do manual and pneumatic C ring pliers compare?
The key difference lies in how they’re powered. Manual C ring pliers are operated by hand, making them more affordable and convenient for small to medium tasks or occasional use. They don’t require an air compressor, which makes them ideal for mobile work or locations without access to power.
On the other hand, pneumatic C ring pliers use compressed air to drive the rings, offering faster operation and greater efficiency—especially valuable in high-volume or industrial applications. While pneumatic models come with a higher upfront cost, they significantly improve productivity in large-scale projects.
3. How do I choose the right C ring plier for my job?
Choosing the most suitable C ring plier depends on several key factors:
- Work scale and frequency
Manual tools are ideal for smaller-scale or occasional projects. Pneumatic tools are better suited for repetitive, high-output tasks where speed and efficiency matter. - Ring size and material compatibility
Make sure the plier matches the specific type and size of hog ring you intend to use. - Working environment
Manual pliers are lightweight and portable—great for use in the field. Pneumatic models require an air compressor, which may not be practical in all locations. - Budget
Manual pliers are generally more affordable. Pneumatic pliers involve a higher upfront investment but offer better long-term efficiency for heavy use.
By evaluating these aspects, you can select a tool that best fits your operational needs and usage context.
