Length: 16 ~ 25 mm

F1B77925LJ

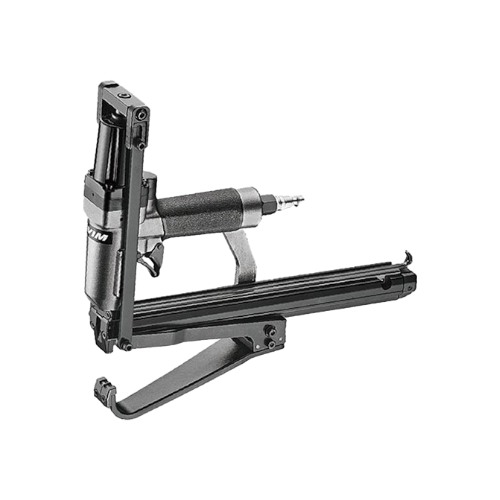

LJ Type Pneumatic Plier For Carton
Specification
L x W x H: 325 x 63 x 362 mm
Weight: 2.2 kgs
Loading Capacity: 168 pcs

Description

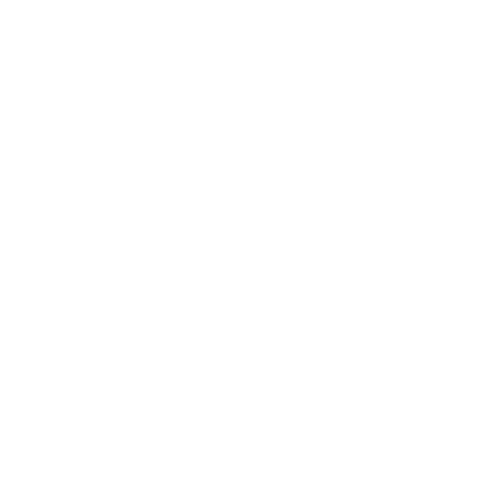

Staple Type: Narrow Crown Staples
Crown: 12.5 mm
Width x Thickness: 0.6 x 1.3 mm
Fastener Range: 16 - 25 mm
Select the Staples for F1B77925LJ
Add Inquiry (0)

Product Overview

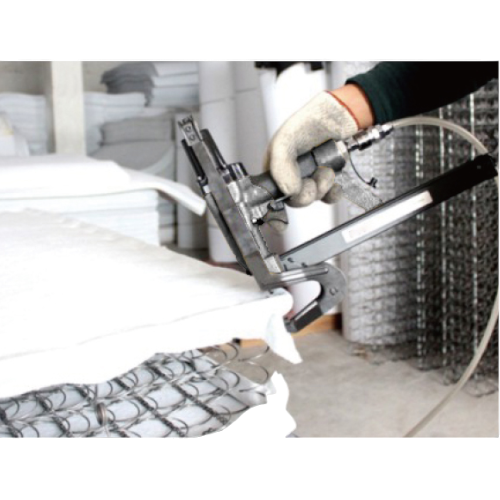

The LJ Type Stapling Plier is a versatile and reliable tool designed for high-performance industrial stapling applications. Engineered with precision, it is particularly ideal for carton sealing, ensuring strong, secure closures that withstand handling and transport. Whether you're working in furniture manufacturing, bedding assembly, innerspring mattress production, blister packaging, or automotive interior panel and trim, this stapling plier delivers consistent results across a wide range of materials.

Built with operator comfort and safety in mind, the LJ Type features low noise operation, making it suitable for busy production environments. Easy loading mechanisms minimize downtime and enhance efficiency, while the double trigger safety lock ensures safe use during repetitive tasks. Additionally, the adjustable opening spring allows for customization based on different workpieces, providing flexibility and precision for various stapling needs. Durable, user-friendly, and highly adaptable, the LJ Type Stapling Plier is your go-to solution for dependable sealing and fastening tasks.



Application


Furniture
Bedding
Innerspring mattresses
Carton
Blister
Automotive interior panel and trim

Features


Low noise
Easy loading
Double trigger safety lock
Opening spring can be adjusted according to work piece


Comparison Chart for Similar Products

SJ Type Stapling Plier
Model No. Crown Width x Thickness Fastener Range Loading Capacity
1216JLJ 12.8 mm 0.55 x 1.27 mm 6 - 16 mm 200 pcs
F1B77716LJ 12.6 mm 0.7 x 2.3 mm 8 - 16 mm 100 pcs
F1B77916LJ 12.5 mm 0.6 x 1.3 mm 8 - 16 mm 168 pcs
8016LJ 12.9 mm 0.65 x 0.95 mm 8 - 16 mm 250 pcs
F16J16LJ 11.9 mm 0.55 x 1.9 mm 8 - 16 mm 200 pcs
P88LJ 13.2 mm 0.5 x 1.2 mm 12 - 25 mm 200 pcs
P11025LJ 13.2 mm 0.6 x 1.6 mm 12 - 25 mm 200 pcs
P11025KLJ 12.8 mm 0.6 x 1.6 mm 12 - 25 mm 200 pcs
19525LJ 12.8 mm 0.65 x 1.8 mm 12 - 25 mm 200 pcs
8025LJ 12.9 mm 0.65 x 0.95 mm 12 - 25 mm 250 pcs
F1B77725LJ 12.6 mm 0.7 x 2.3 mm 16 - 25 mm 100 pcs
F1B77925LJ 12.5 mm 0.6 x 1.3 mm 16 - 25 mm 168 pcs



FAQ

1. What are the main applications of a Pneumatic Stapling Plier?

Pneumatic stapling pliers are primarily used in:

  • Mattress production: Securing inner springs, fabric layers, and edge supports.
  • Furniture upholstery: Attaching fabric or leather to frames.
  • Packaging: Securing cardboard boxes or blisters.
  • Automotive interiors: Fastening seat covers and padding.


2. Which stapling plier is suitable for me?

Choosing the right pneumatic stapling plier depends on several key factors:

  • Size of Staples
    Different stapling pliers are designed for specific staple sizes. Ensure the tool you select supports the correct staple width, length, and thickness for your application.

  • Type of Anvil
    VIM offers three types of anvils—SJ, BJ, and LJ—designed for different applications. The SJ type is primarily used in mattress production, ensuring secure fastening of inner components. The BJ type is commonly used for closing cartons and blister packs, providing versatility for various packaging applications. The LJ type is specifically designed for carton sealing, ensuring a tight and secure closure for packaging needs.

  • Capacity of the Pneumatic Stapling Plier
    Consider how many staples the stapler can hold at once. Higher capacity stapling pliers reduce the frequency for reloading, increasing efficiency for high-volume production.

  • Whether You Need a Safety Trigger
    A double trigger prevents accidental firing, which is crucial for workplace safety. If your work environment prioritizes safety, choosing a model with this feature is recommended.


3. How do I maintain my Pneumatic Stapling Plier?

To maintain your pneumatic stapling plier, lubricate it daily with a few drops of pneumatic tool oil to prevent wear and ensure smooth operation. Regularly check for air leaks, clean out dust and debris to prevent jamming, and always disconnect the air supply before clearing blockages to avoid accidental firing.

Furthermore, always use the correct staples to prevent misalignment or damage. When not in use, store the tool in a dry, clean place to prevent rust and corrosion. By following these maintenance practices, you can extend the lifespan of your tool and ensure consistent, reliable performance.



OEM service

Our OEM services offer comprehensive customization options to meet your specific branding needs. We provide the ability to customize the color of your nail gun, apply your private label, design and create personalized packaging, and manual.
With our OEM services, you can confidently create a unique and professional product line that stands out in the market.



Guarantee

VIM warrants to the original purchaser that our nailer will be free from defects in material and workmanship under normal use for a period of 1 year from the date of original purchase.
If this nailer should prove to be defective in material or workmanship within the warranty period, we will send the spare parts to you to replace, without charge.
The 1-year warranty does not include easy-worn parts, and any defect or damages caused by resulting from accident, misuse, abuse, improper maintenance, or normal wear and tear.
