PRODUCTS
Length: 6 ~ 16 mm
1216JBJ

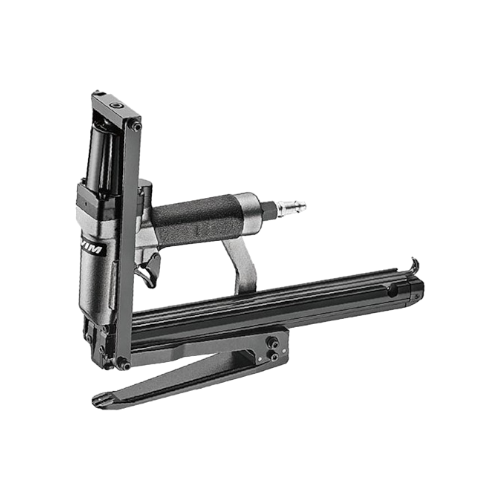

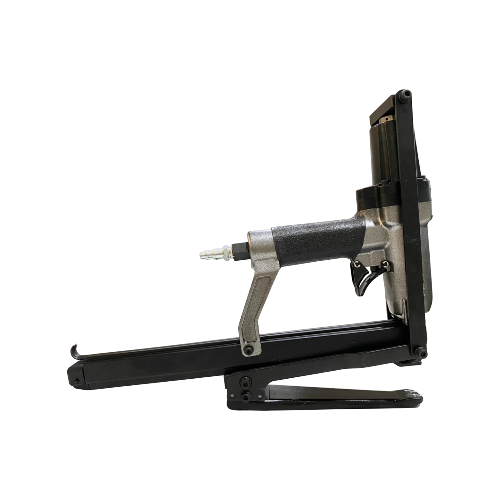

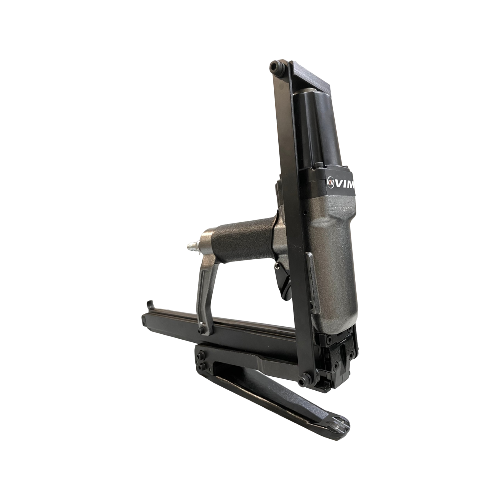

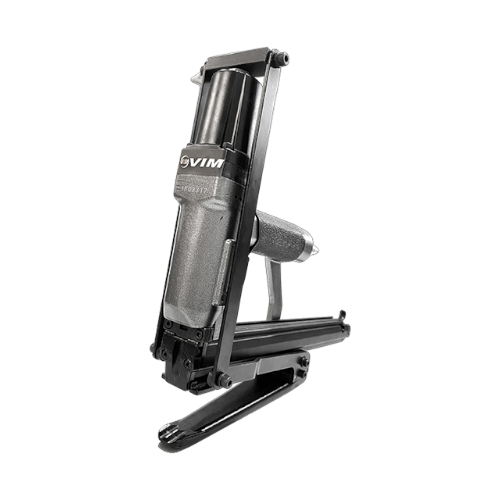

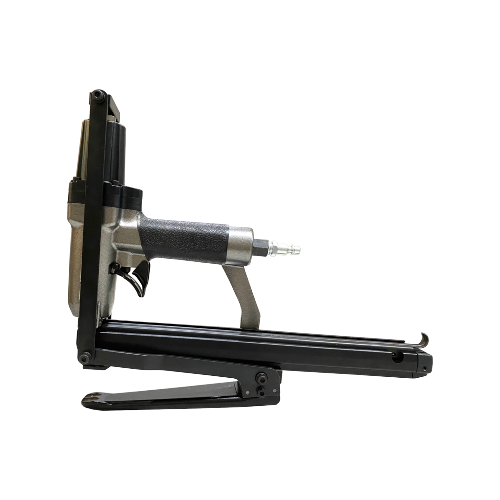

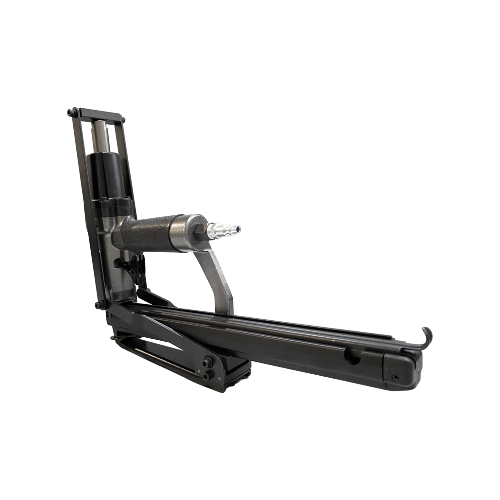

BJ Type Pneumatic Plier For Carton And Blister- Specification
- L x W x H: 306 x 63 x 362 mm
- Weight: 2.2 kgs
- Loading Capacity: 200 pcs
Description

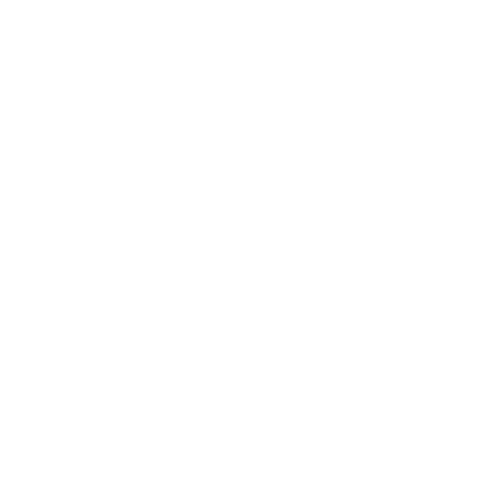

- Staple Type: Fine Wire Staples
- Crown: 12.8 mm
- Width x Thickness: 0.55 x 1.27 mm
- Fastener Range: 6 – 16 mm
- Select the Staples for 1216JBJ
Product Overview

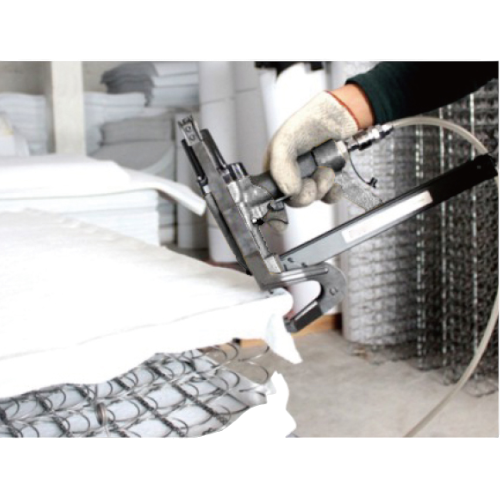

The BJ Type Stapling Plier is a durable and efficient fastening tool designed primarily for carton and blister sealing, ensuring secure and reliable packaging. It is also widely used in furniture upholstery, bedding assembly, innerspring mattress manufacturing, and automotive interior panels and trim.
This stapling plier features a low-noise operation, making it ideal for extended use in busy work environments. It’s easy-loading mechanism enhances efficiency by allowing quick staple reloading, while the double-trigger safety lock prevents accidental firing, ensuring user safety. Additionally, the adjustable opening spring allows customization based on the workpiece, providing precise and consistent stapling for various applications. With its versatile design and robust performance, the BJ Type Stapling Plier is an essential tool for industries requiring secure, high-quality fastening solutions.
Application
- Furniture
- Bedding
- Innerspring mattresses
- Carton
- Blister
- Automotive interior panel and trim
Features
- Low noise
- Easy loading
- Double trigger safety lock
- Opening spring can be adjusted according to work piece
Comparison Chart for Similar Products
| BJ Type Stapling Plier | ||||
|---|---|---|---|---|
| Model No. | Crown | Width x Thickness | Fastener Range | Loading Capacity |
| 1216JBJ | 12.8 mm | 0.55 x 1.27 mm | 6 - 16 mm | 200 pcs |
| F1B77716BJ | 12.6 mm | 0.7 x 2.3 mm | 8 - 16 mm | 100 pcs |
| F1B77916BJ | 12.5 mm | 0.6 x 1.3 mm | 8 - 16 mm | 168 pcs |
| 8016BJ | 12.9 mm | 0.65 x 0.95 mm | 8 - 16 mm | 250 pcs |
| F16J16BJ | 11.9 mm | 0.55 x 1.9 mm | 8 - 16 mm | 200 pcs |
| P88BJ | 13.2 mm | 0.5 x 1.2 mm | 12 - 25 mm | 200 pcs |
| P11025BJ | 13.2 mm | 0.6 x 1.6 mm | 12 - 25 mm | 200 pcs |
| P11025KBJ | 12.8 mm | 0.6 x 1.6 mm | 12 - 25 mm | 200 pcs |
| 19525BJ | 12.8 mm | 0.65 x 1.8 mm | 12 - 25 mm | 200 pcs |
| 8025BJ | 12.9 mm | 0.65 x 0.95 mm | 12 - 25 mm | 250 pcs |
| F1B77725BJ | 12.6 mm | 0.7 x 2.3 mm | 16 - 25 mm | 100 pcs |
| F1B77925BJ | 12.5 mm | 0.6 x 1.3 mm | 16 - 25 mm | 168 pcs |
FAQ
1. What are the main applications of a Pneumatic Stapling Plier?
Pneumatic stapling pliers are primarily used in:
- Mattress production: Securing inner springs, fabric layers, and edge supports.
- Furniture upholstery: Attaching fabric or leather to frames.
- Packaging: Securing cardboard boxes or blisters.
- Automotive interiors: Fastening seat covers and padding.
2. Which stapling plier is suitable for me?
Choosing the right pneumatic stapling plier depends on several key factors:
- Size of Staples
Different stapling pliers are designed for specific staple sizes. Ensure the tool you select supports the correct staple width, length, and thickness for your application. - Type of Anvil
VIM offers three types of anvils—SJ, BJ, and LJ—designed for different applications. The SJ type is primarily used in mattress production, ensuring secure fastening of inner components. The BJ type is commonly used for closing cartons and blister packs, providing versatility for various packaging applications. The LJ type is specifically designed for carton sealing, ensuring a tight and secure closure for packaging needs. - Capacity of the Pneumatic Stapling Plier
Consider how many staples the stapler can hold at once. Higher capacity stapling pliers reduce the frequency for reloading, increasing efficiency for high-volume production. - Whether You Need a Safety Trigger
A double trigger prevents accidental firing, which is crucial for workplace safety. If your work environment prioritizes safety, choosing a model with this feature is recommended.
3. How do I maintain my Pneumatic Stapling Plier?
To maintain your pneumatic stapling plier, lubricate it daily with a few drops of pneumatic tool oil to prevent wear and ensure smooth operation. Regularly check for air leaks, clean out dust and debris to prevent jamming, and always disconnect the air supply before clearing blockages to avoid accidental firing.
Furthermore, always use the correct staples to prevent misalignment or damage. When not in use, store the tool in a dry, clean place to prevent rust and corrosion. By following these maintenance practices, you can extend the lifespan of your tool and ensure consistent, reliable performance.
OEM service
Our OEM services offer comprehensive customization options to meet your specific branding needs. We provide the ability to customize the color of your nail gun, apply your private label, design and create personalized packaging, and manual.
With our OEM services, you can confidently create a unique and professional product line that stands out in the market.
Guarantee
VIM warrants to the original purchaser that our nailer will be free from defects in material and workmanship under normal use for a period of 1 year from the date of original purchase.
If this nailer should prove to be defective in material or workmanship within the warranty period, we will send the spare parts to you to replace, without charge.
The 1-year warranty does not include easy-worn parts, and any defect or damages caused by resulting from accident, misuse, abuse, improper maintenance, or normal wear and tear.
